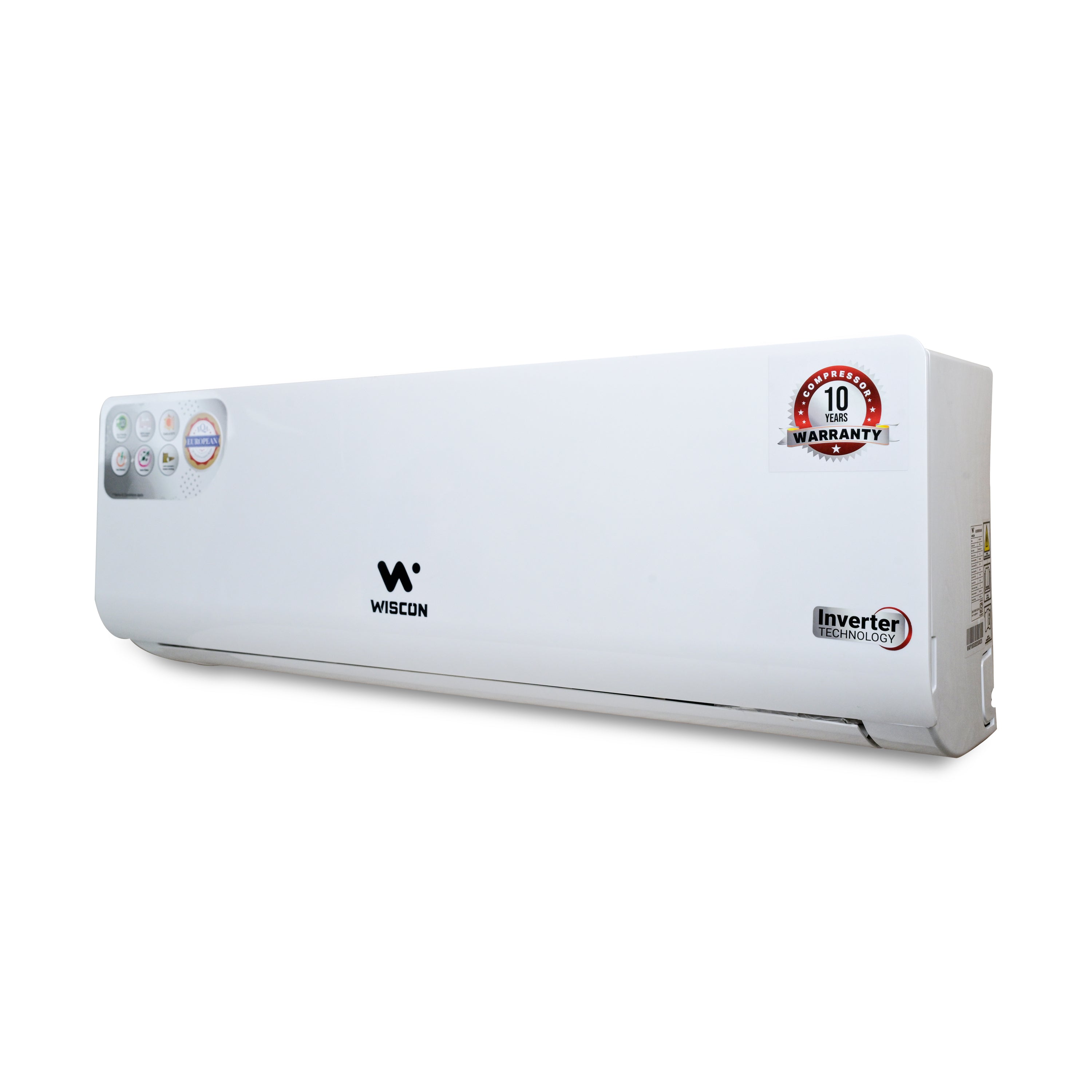

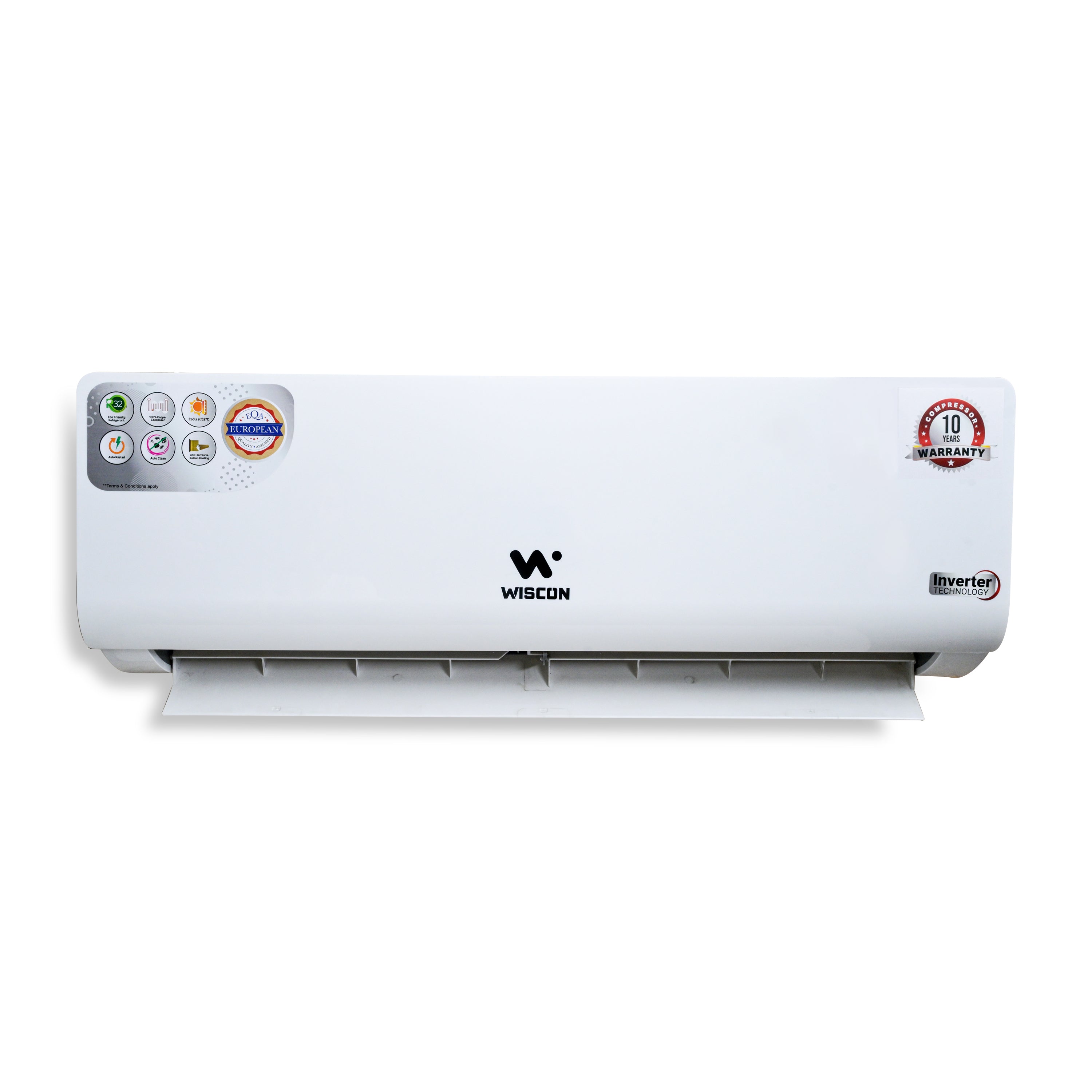

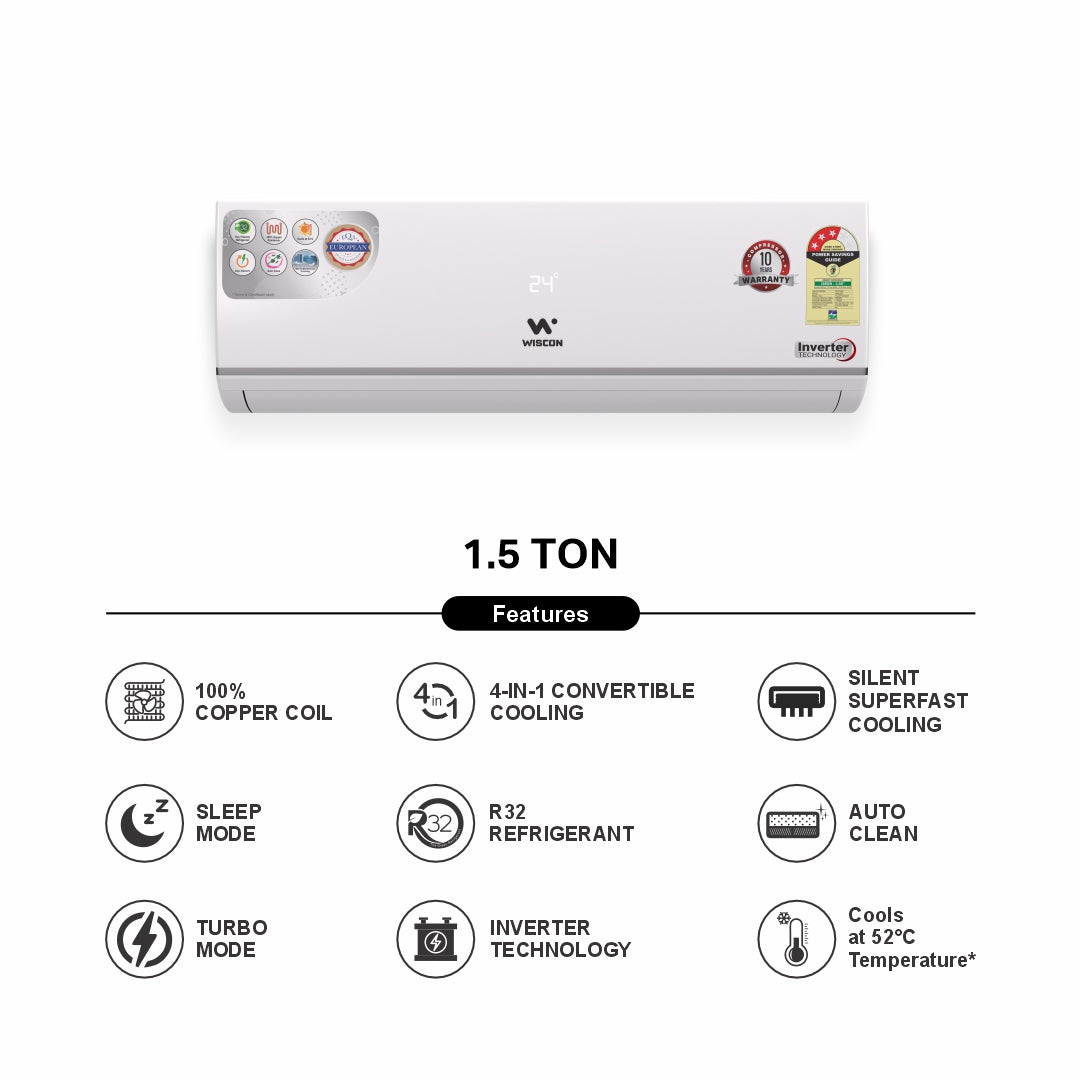

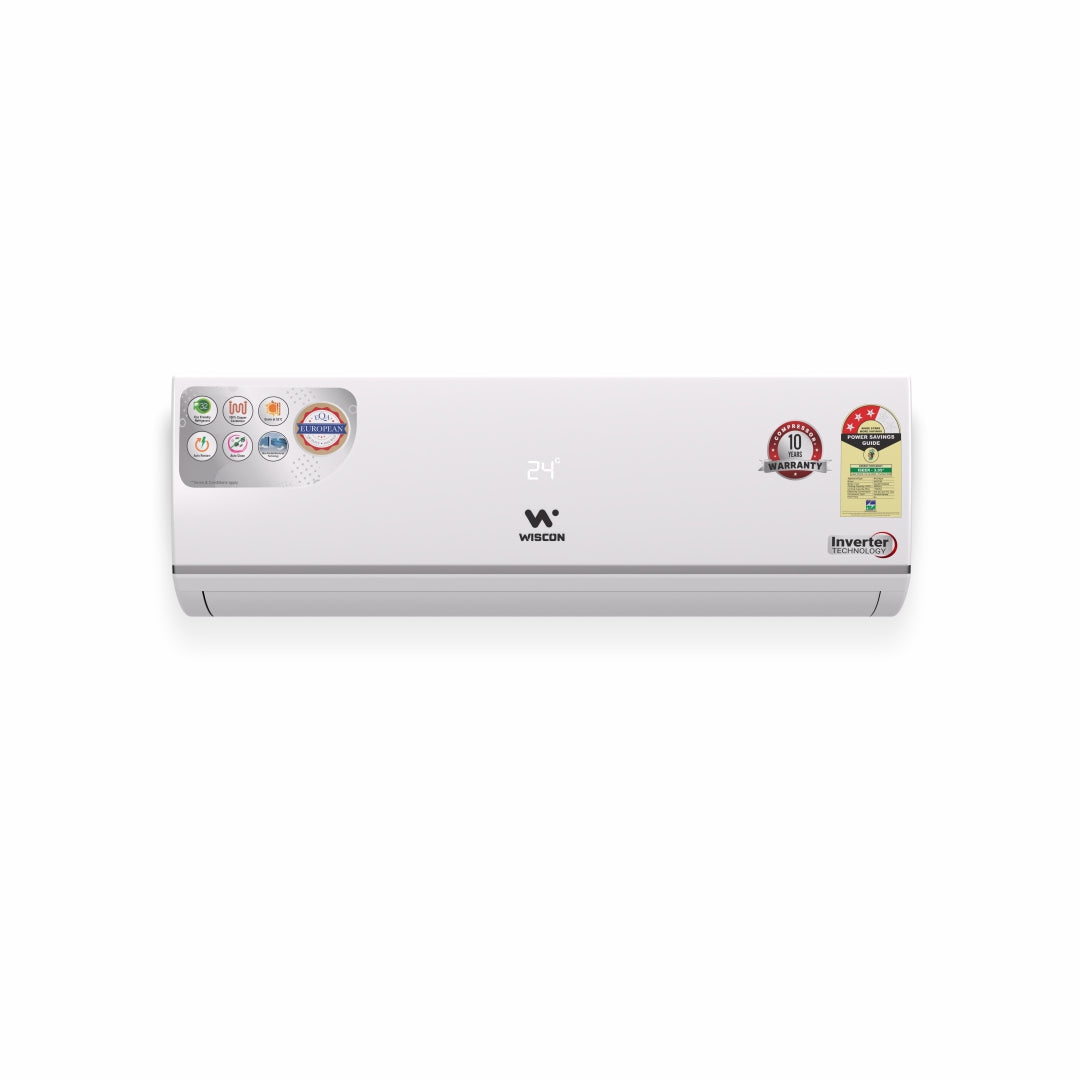

Wiscon 1.5 Ton 3 Star Invertor Air Conditioner (WIASP150)

Model

WIASP150

Climate type

T1

Indoor unit

900 MM

Outdoor Unit

20" Inch

Power supply

Ph-V-Hz

220-240V/50HZ

Type

Split

Power Supply Mode

Indoor

Cooling capacity

W

5100

ISEER

3.9

Compressor

Model

GSX108CKS/KSN108D31

Type

Rotary

Brand

HIGHLY/GMCC

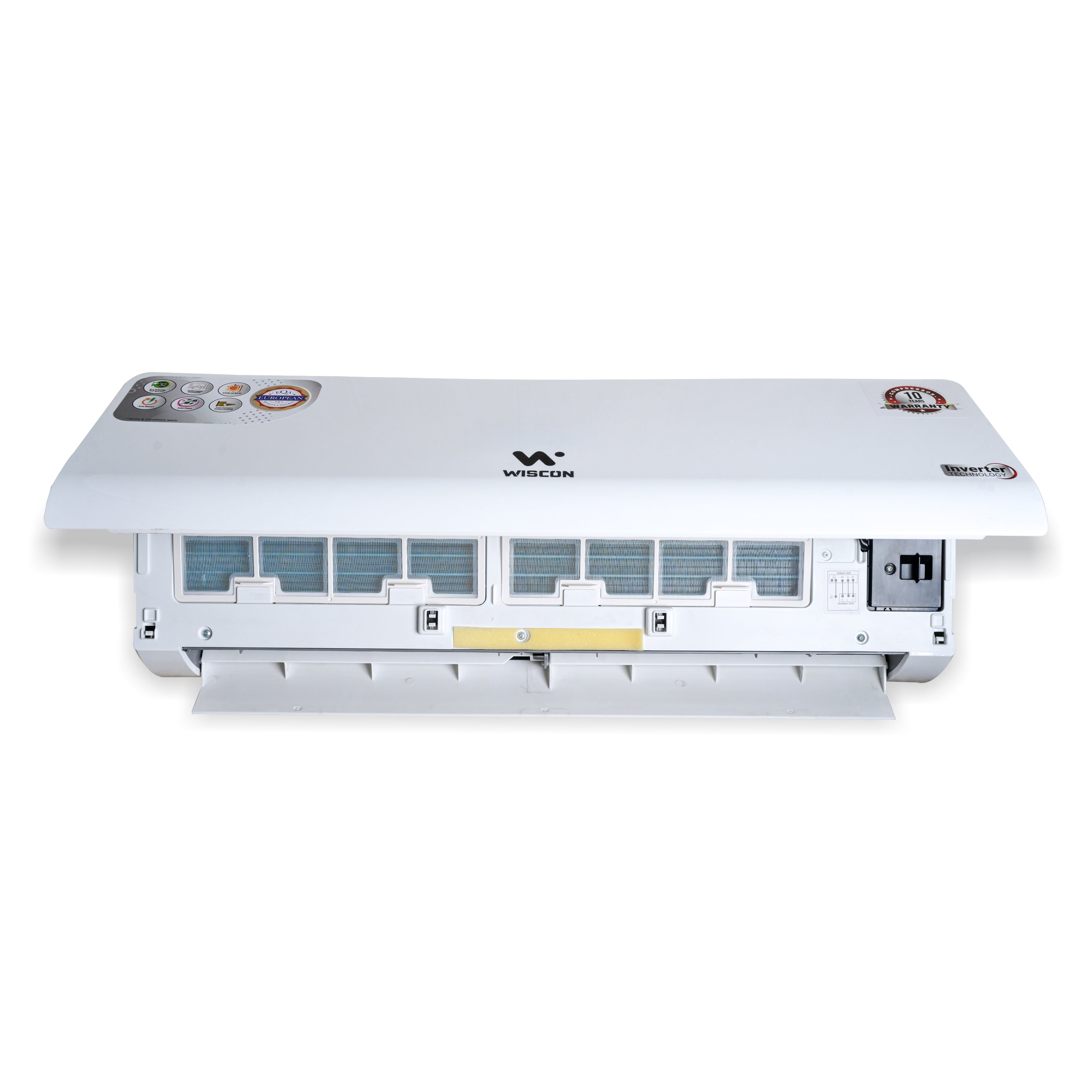

Indoor unit

Motor

Power output

W

35

-

-

-

Motor speed (TU/Hi/Mi/Lo)

RPM

1450/1350/1150/950

Evaporator

a.Number of rows

2

b. Number of HP

16

c.Tube pitch(a)x row pitch(b)

mm

21x12.7

d.Fin material

Hydrophilic

e.Tube outside dia.and type

mm

Φ7

f.Coil length x height x width

mm

710 × 378 × 25.4

Fan

Indoor fan Diameter

mm

Φ107.5 × 695

Indoor air flow

m3/h

1050

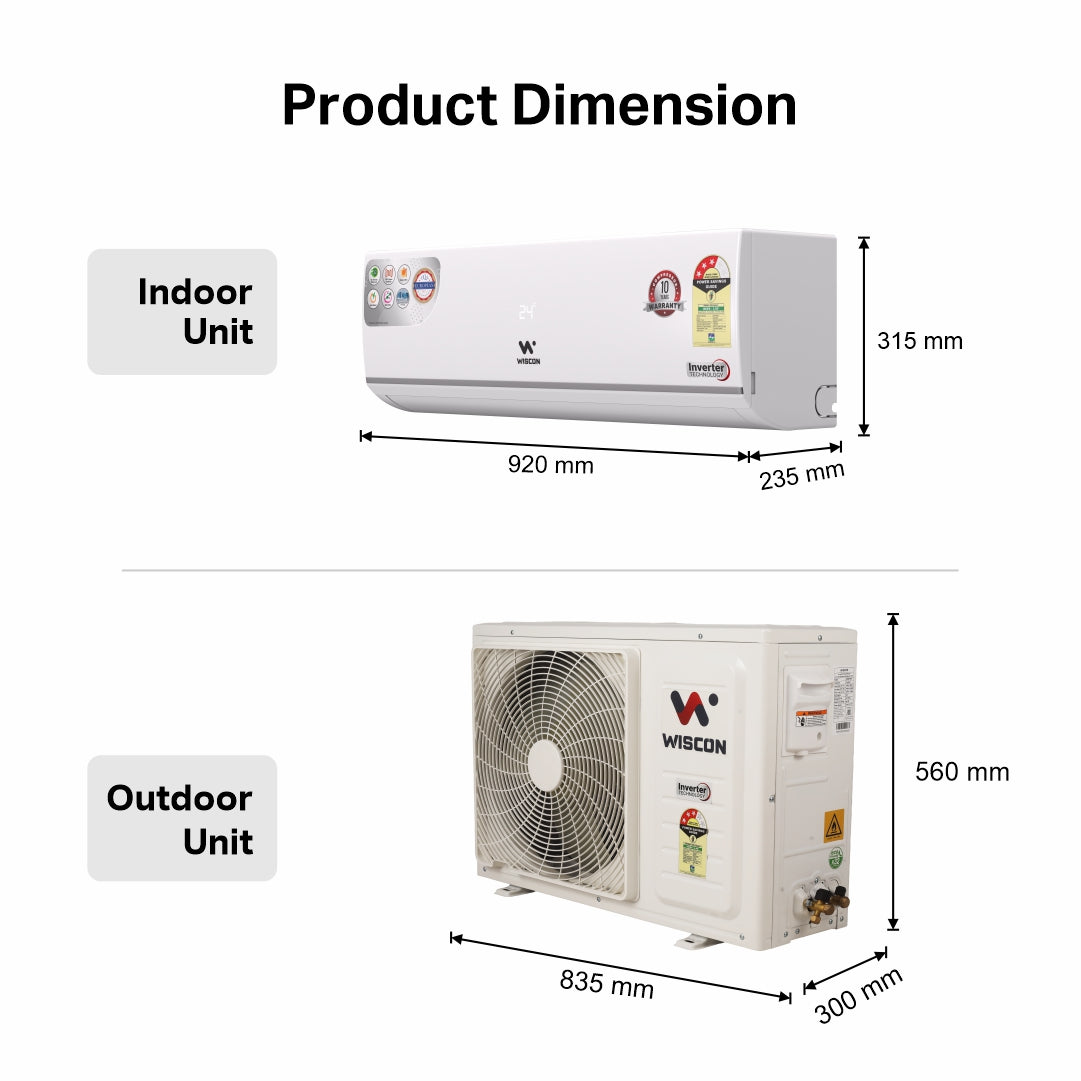

Unit dimension (W*H*D)

mm

920 × 315 × 235

Packing (W*H*D)

mm

1022 × 380 × 302

Outdoor unit

 Outdoor fan  motor

Model

45W BLDC (Driver Less)

Brand

WOLONG/PICL/Weilling

output power

W

45

-

-

-

Motor speed

Rpm

900

Fan

Diameter

-

17.5”

No. of Blade

Pieces

3

Condenser

a.Number of rows

1

b. Number of HP

13

c.Tube pitch(a)x row pitch(b)

mm

19.5*11.6

-

-

d.Tube outside dia.and type

mm

Ф5

Refrigerant type

R32

Refrigerant pipe

Liquid side

mm

6.00

Gas side

mm

12.00

Refrigerant pipe length*

3.0 Meters
