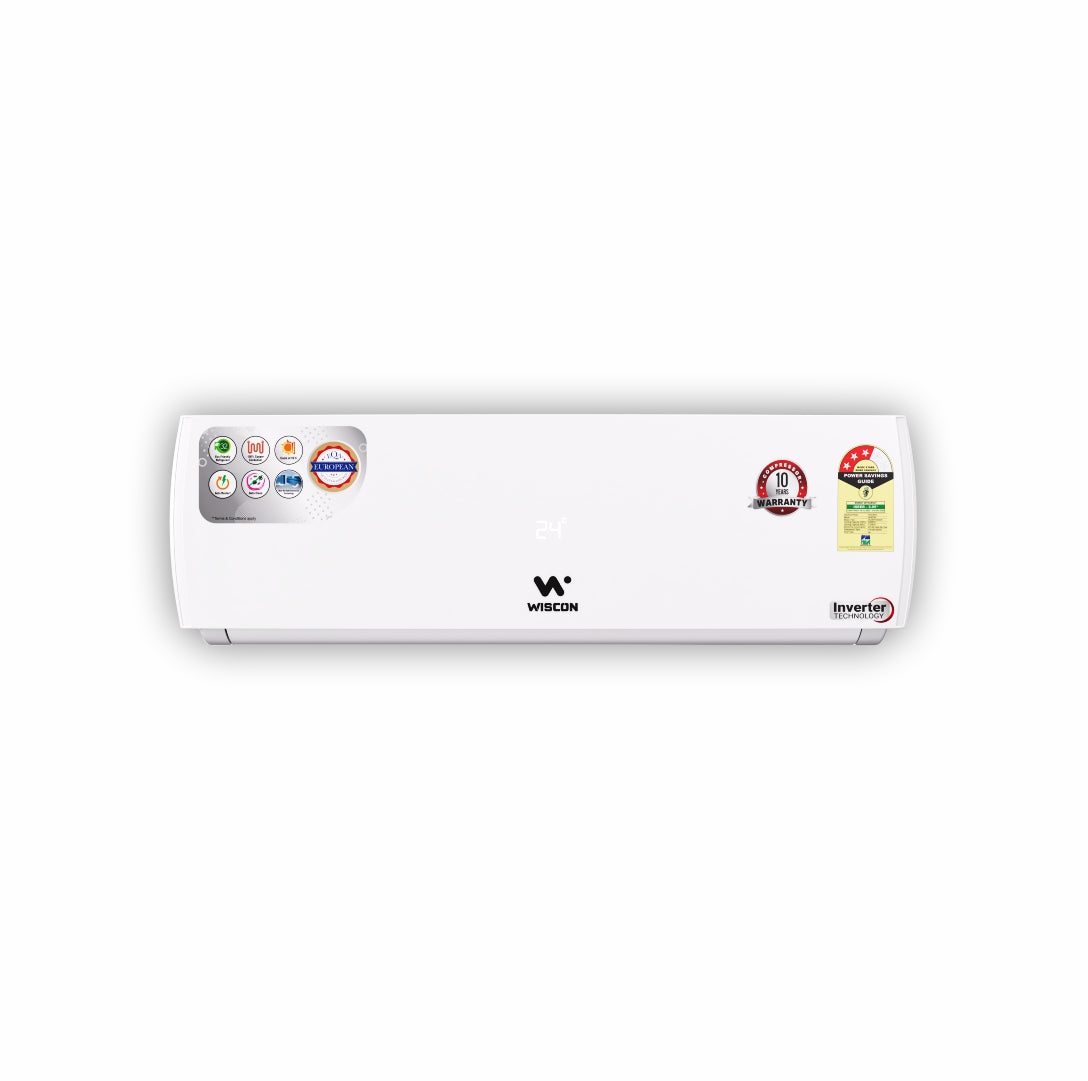

Wiscon 1.0 Ton 3 Star Invertor Air Conditioner (WISP3100)

Model

WISP3100

Climate type

T1

Indoor unit

820 MM

Outdoor Unit

20" Inch

Power supply

Ph-V-Hz

220-240V/50HZ

Type

Split

Power Supply Mode

Indoor

Cooling capacity

W

3450

ISEER

3.9

Compressor

Model

GSX073CKTA6JT8

Type

Rotary

Brand

Highly

Indoor unit

Motor

Power output

W

20

-

-

-

Motor speed (TU/Hi/Mi/Lo)

RPM

1500/1350/1000/900

Evaporator

a.Number of rows

2

b. Number of HP

12

c.Tube pitch(a)x row pitch(b)

mm

21x12.7

d.Fin material

Hydrophilic

e.Tube outside dia.and type

mm

Φ7

f.Coil length x height x width

mm

620*294*25.4

Fan

Indoor fan Diameter

mm

Φ93.5*628

Indoor air flow

m3/h

850

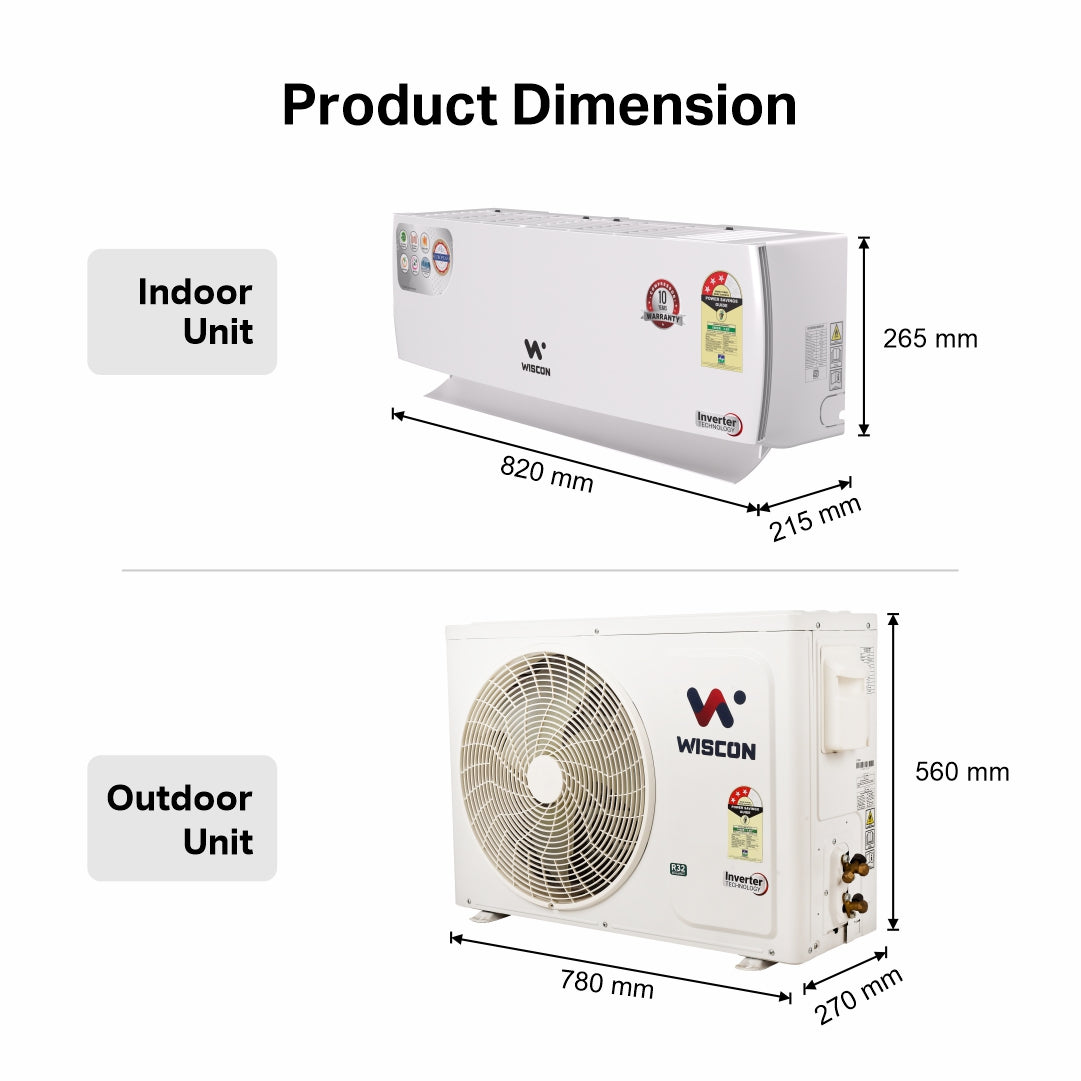

Unit dimension (W*H*D)

mm

820*215*265

Packing (W*H*D)

mm

890*280*340

Outdoor unit

 Outdoor fan  motor

Model

YKT-33-6-31L

Brand

WOLONG/PICL/Weilling

output power

W

33

-

-

-

Motor speed

Rpm

900

Fan

Diameter

-

17.5”

No. of Blade

Pieces

3

Condenser

a.Number of rows

1

b. Number of HP

13

c.Tube pitch(a)x row pitch(b)

mm

19.5*11.6

-

-

d.Tube outside dia.and type

mm

Ф5

Refrigerant type

R32

Refrigerant pipe

Liquid side

mm

6.00

Gas side

mm

12.00

Refrigerant pipe length*

3.0 Meters
